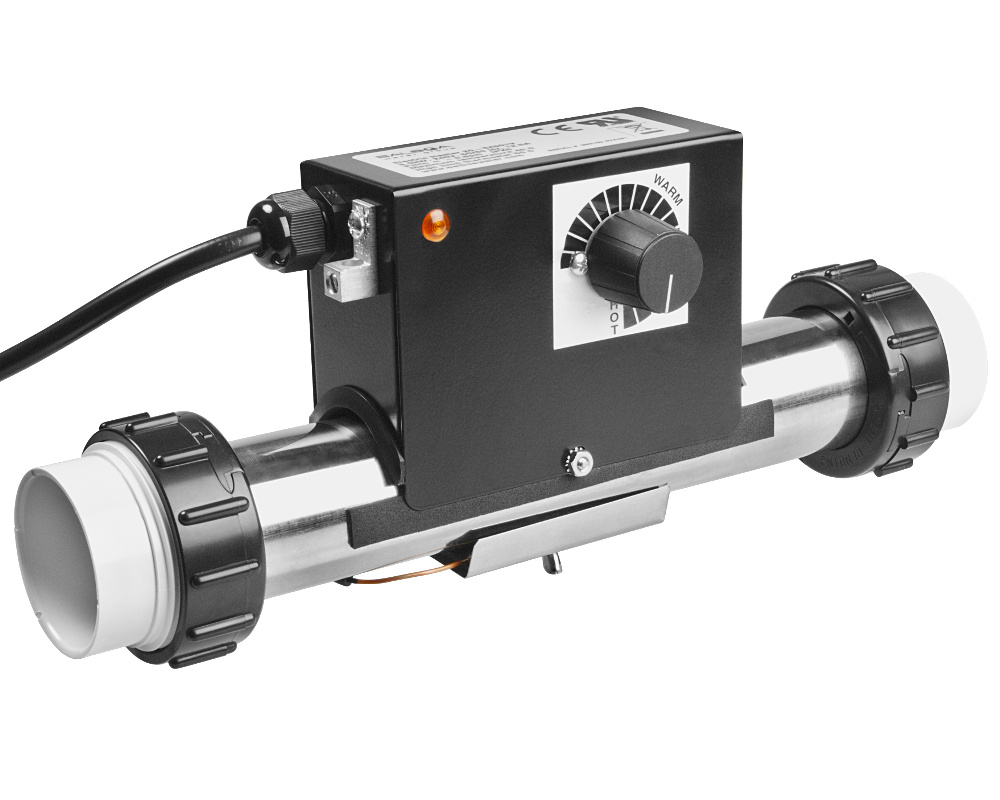

Balboa 3 kW "Vacuum" heater with integrated thermostat

This 3 kW heater is autonomous in the sense that it has its own thermostat, as well as an overheat protection and flow detection using a vacuum switch.

This "Vacuum" version heater must be installed on the suction side of the pump, in order to activate the vacuum switch.

It is also available with a 1,5 kW power.

The heater is supplied with 1.5" sockets, connections and gaskets.

Technical specifications
Power: 3 kW (12,5A)
Minimum water flow rate: 9000 l/h
Vacuum activation threshold: -0.8 psi

Dimensions
Length without unions : 225 mm
Height: 130 mm
Unions: 48 mm inside diameter for 1.5-inch pipes

Warranty
2-year Tubs Parts warranty

Part numbers
Balboa : 20-54301V
