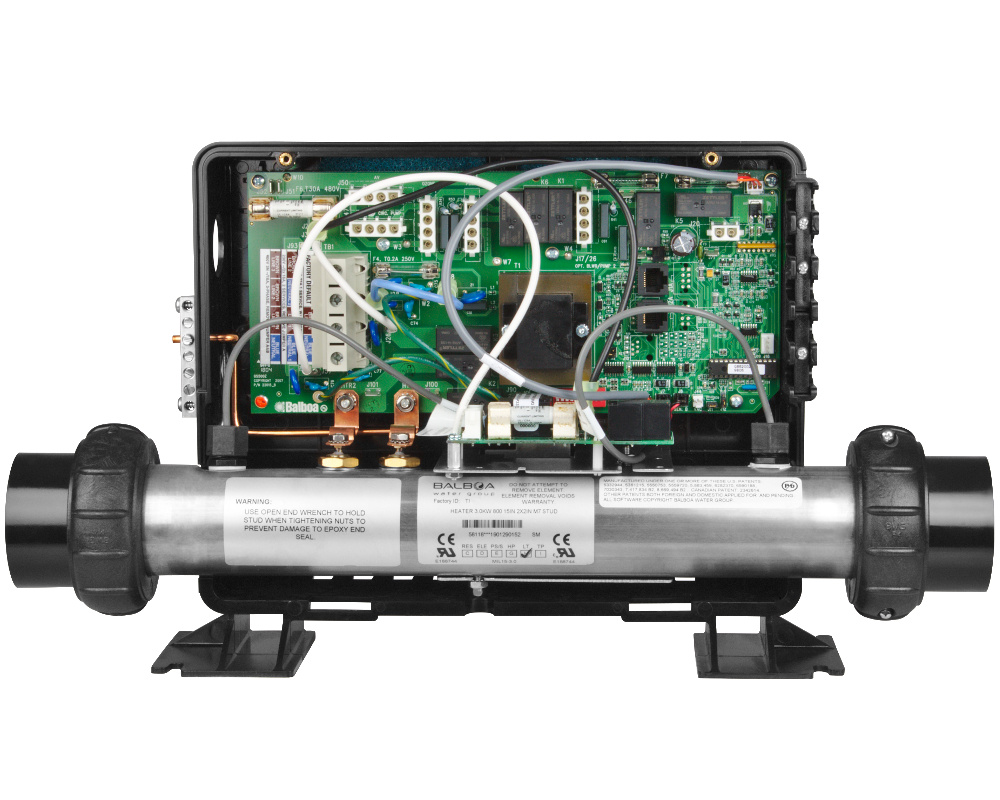

Balboa GS520DZ control system
The Balboa GS520DZ control system can control the following equipment:
- A circulation pump
- Two 2-speed pumps (required)
- Either a third pump or a blower
- An ozonator
- Underwater lighting
- Video and sound system
- A 24-hour circulation pump, but this requires a special configuration, so please contact us.
Dimensions
Height: 268 mm
Width: 311 mm (box only, excluding the heater), 381 mm (heater without unions)
Depth: 112 mm
Plumbing connections to heater: 2-inch (connections and o-rings included)
Compatible with the following keypads
VL801D, VL802D
Power supply
The GS20DZ system is delivered pre-configured for a single-phase power supply. It can also be configured with a two-phase and three-phase power supply (for a distribution of the various units between the phases). If you have additional questions, please refer to the user's manual or contact us when placing your order, and we will take care of the configuration before sending the system.
You may also want to replace your cable gland if necessary!
Warranty
2-year Tubs Parts warranty
Balboa part numbers
Complete GS520DZ system: 54751-01
Incoloy 800 3.0 kW heater: 58118
Printed circuit board only : 55847-01
Expansion board only : 55138 X-P332C
