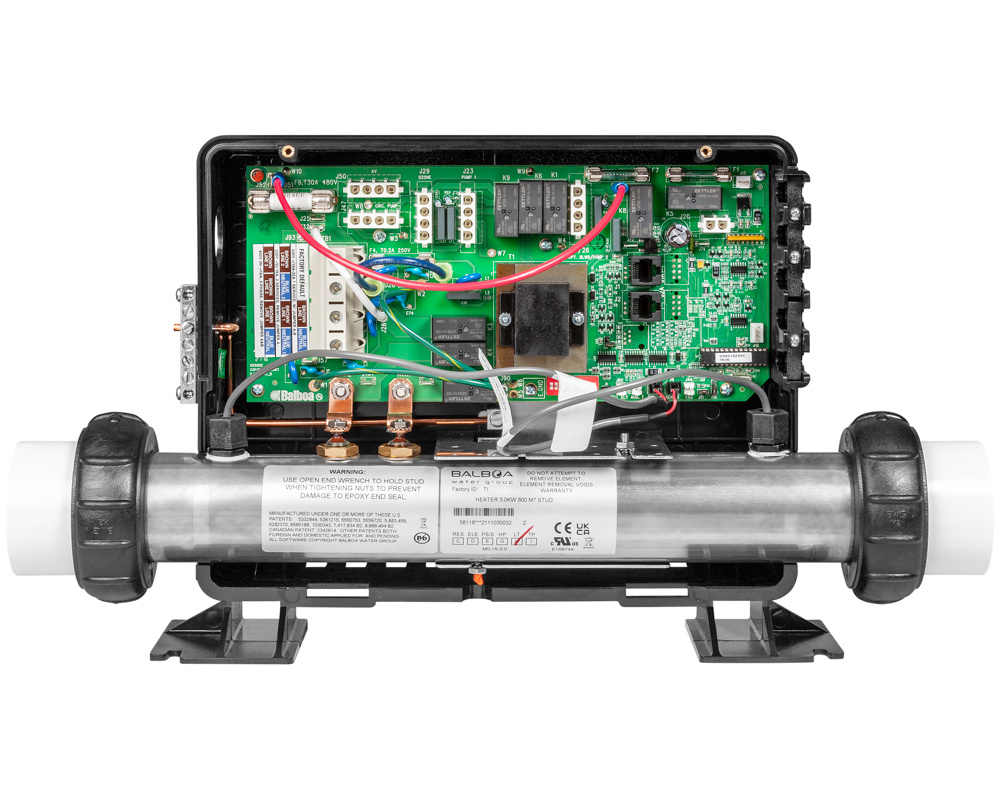

Balboa GS504SZ control system
This economical Balboa spa control system is a great option for retro-fitting older hot tubs if the original equipment has died. It uses Balboa's patented M7 technology which eliminates pressure switches or flow switches and uses Balboa temperature sensors.
It can manage the following equipment:
- 24-hour circulation pump
- Pump 1 single or two-speed
- Pump 2 single-speed (to replace this pump with a blower, use a GS501SZ instead)
- Ozonator
- Underwater lighting
- Sound system
- Built-in 3 kW heater
The equipment connects to the control system using AMP plugs.
The GS504SZ can be converted to GS514SZ by adding a Balboa X-P231 expansions board.
Dimensions
Height: 268 mm
Width of box: 311 mm (box only), 381 mm (heater, excluding unions)
Depth: 117 mm
Plumbing connections to heater: 2-inch (connections and o-rings included)
Compatible with the following keypads
VL600S, VL601S, VL700S, VL701S, 702S
Power supply
The GS504SZ system is delivered pre-configured for a single-phase power supply. It can also be configured with a two-phase and three-phase power supply (for a distribution of the various units between the phases). If you have additional questions, please refer to the GS501SZ user's manual or contact us when placing your order, and we will take care of the configuration before sending the system.
You may also want to replace your cable gland if necessary!
Warranty
2-year Tubs Parts warranty
Balboa part numbers
Complete GS504SZ system: 54650-01, 55461
Incoloy 800 3 kW heater: 58118
Motherboard : 54516-02, 54561-01
