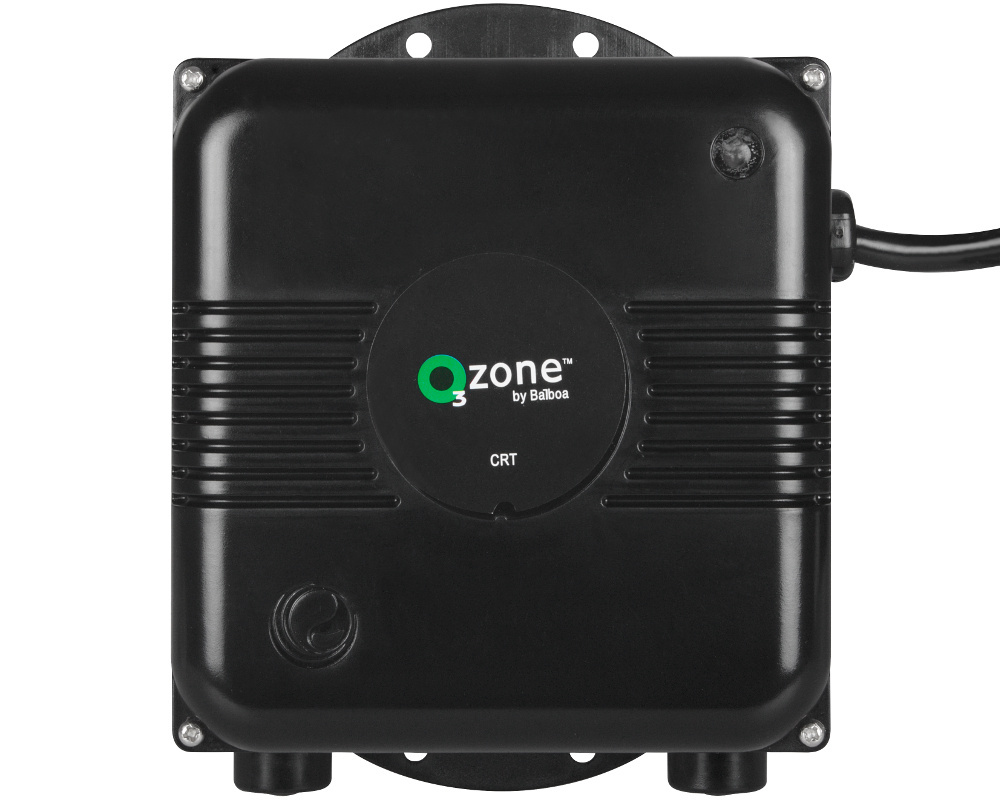

Balboa Cartridge CD ozonator

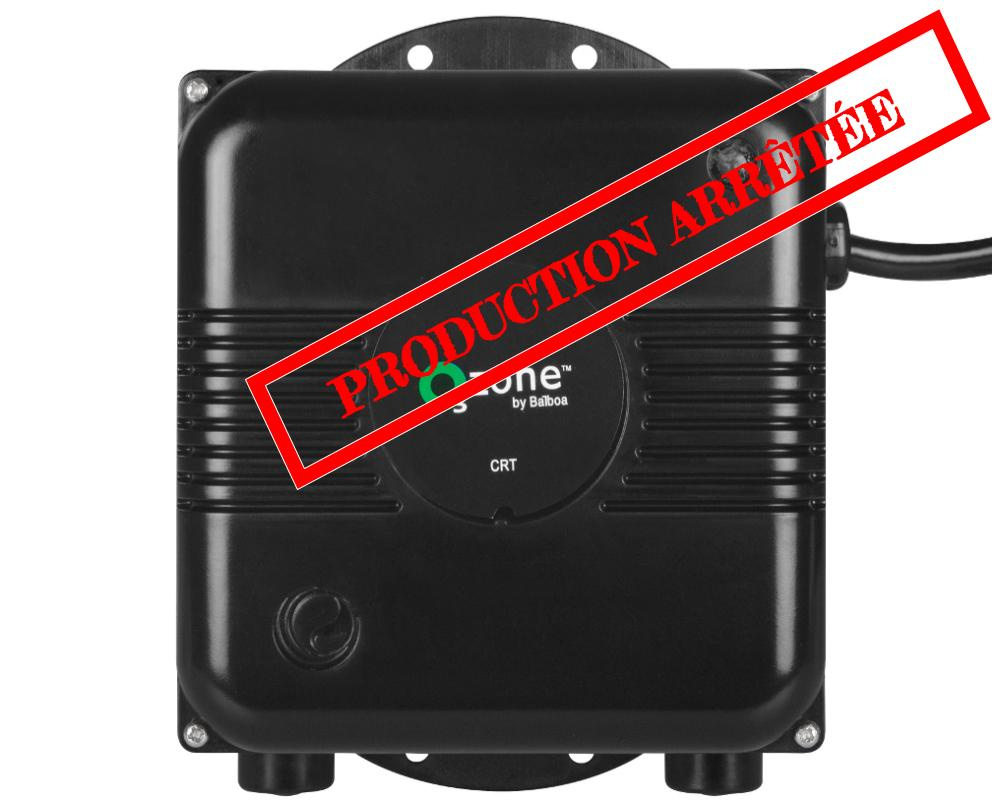

This CD cartridge (Corona Discharge) ozonator is no longer produced by Balboa. It has been replaced by the Ultra3zone model.

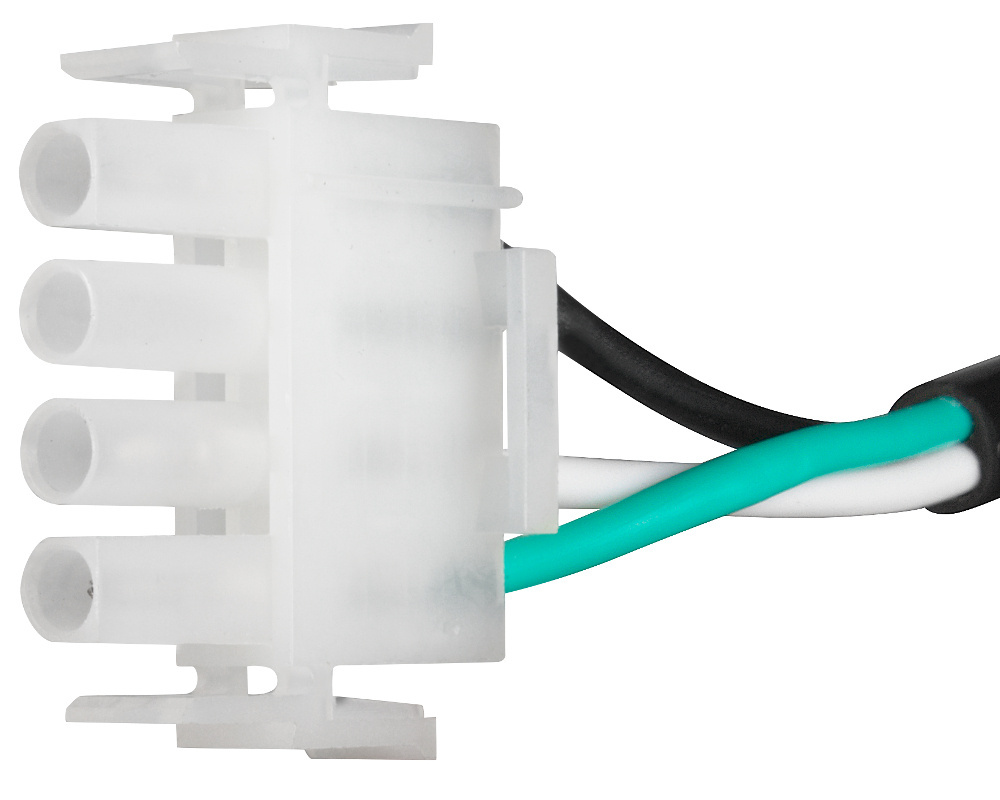

This compact and efficient Balboa Cartridge CD (Corona Discharge) ozonator is suitable for spas up to 3700 litres in volume, but we mainly recommend it for spas having in between 800 and 2000 litres. It is quick and easy to install in your ozone-ready hot tub, or as a replacement ozonator for older, outdated UV models. It comes with a 4-pin AMP connector, but adapters for mini J&J plugs are available on our website. The kit also includes air tubing and a check valve.
Replacing an ozonator is a very quick job if the hot tub is already equipped with an ozone injector. It is much, much more difficult if there was not an ozonator already installed, or if the ozonator was of a type that doesn't use a separate injector.
Technical specifications
Ozone production: 75 mg/hour (with a 2 liter/min air flow)
Dimensions: 127 x 162 x 68 mm
Power: 8.5W
Lifespan: approximately 9000 hours ozone production, up to a maximum of 3 years
Part numbers
Balboa: 54451 (replaces the old "chip" version, ref 54449)
