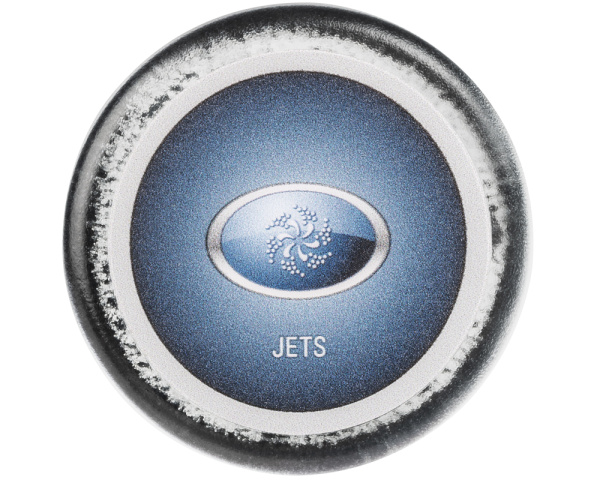

Balboa AX10 A1 auxiliary panel - Jets

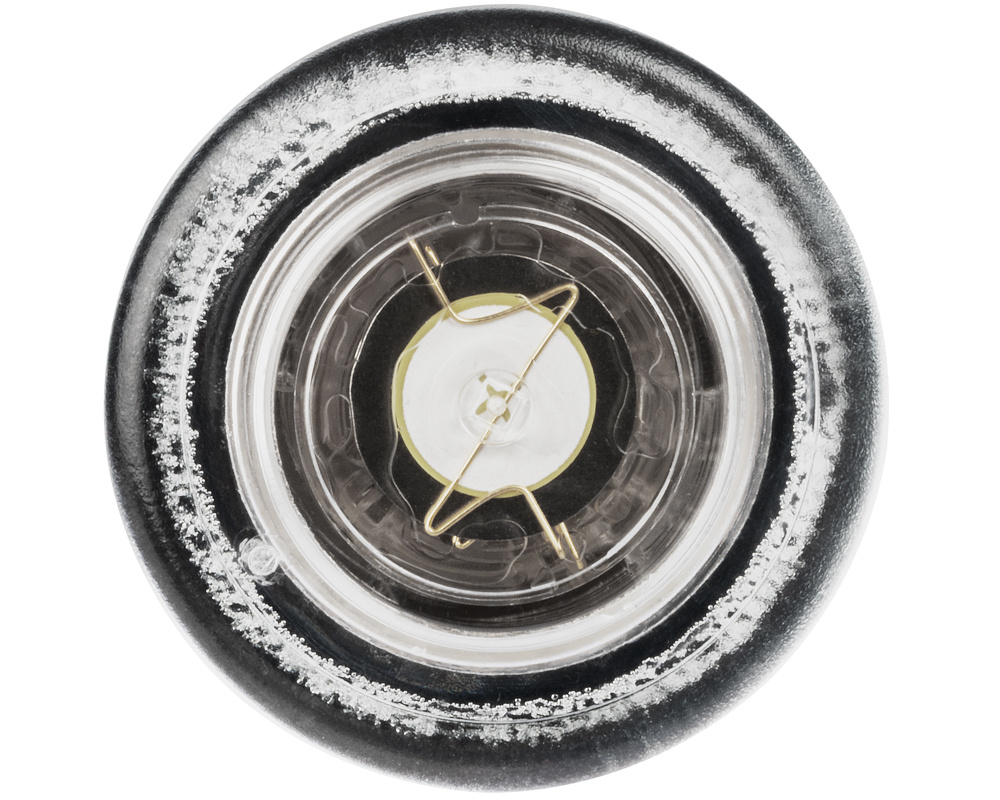

Sold without overlay.
This button is designed for Balboa's GL (GL2000, GL2001, GL8000M3, GL84P) and some BP (BP6013G1, BP6013G2, BP6013G3 and BP2100G1) systems.
This is the A1 version, so that the “Jets” (or Pump 1) function can be moved from the main keypad. If you're not sure, especially with BP series systems, please check the part number of the AX10 keypad you wish to replace, or contact us.
It comes with a cable and plug that connects directly to the auxiliary keypad socket on the control system.
The keypad is supplied without its self-adhesive overlay, to be purchased separately with the corresponding function (Jets, Jets 2, Blower, etc.) or as a generic version.
Dimensions
Face diameter: 56 mm
Drill diameter: 31 mm
Height: 28 mm
Cable length: 5 m
Balboa part numbers
Without overlay: 52803
With overlay: 52683
Wellis : ACM0670
We also supply other versions of the AX10 keypad, depending on the function to be remote from the main keypad:
Keypad part numbers | Keypad designation | Keypad function |
|
with overlay | without overlay | ||
52683 | 52803 | AX10 A1 | Jets / Pump 1 |
52764 | 52804 | AX10 A2 | Jets 2 / Pump 2 |
52765 | 52805 | AX10 A3 | Blower |
52766 | 52806 | AX10 A4 | Light |
55533 | 52805 | AX10 A3 | Jets 3 / Pump 3 |
54710 | 52804 | AX10 A2 | Jets 4 / Pump 4 |
