Balboa 12-pin transformer

Only 10 in stock
72,00€
incl. 20% VAT
Quantity:
Balboa 12-pin transformer - Click to enlarge

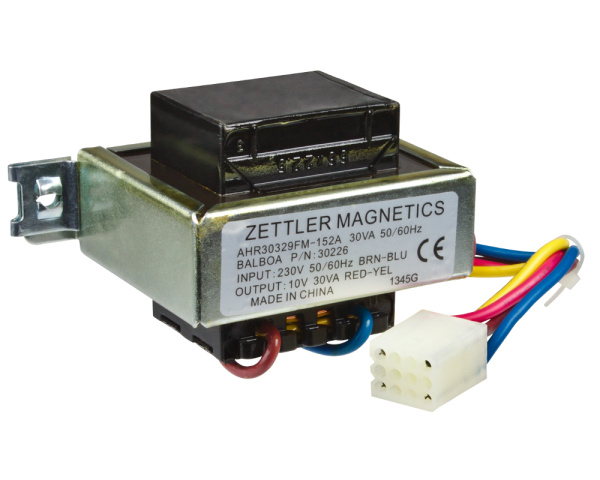

This transformer is easily identified by its clear plastic 12-pin block connector. It uses 4 wires : brown + blue (230vac) and red + yellow (12vac).

It is mainly used on Balboa systems and PCB's, like the SF100, GL8000, GL84P and the older metal boxes.

Dimensions
100 mm x 58 mm x 50 mm

Part numbers
Balboa : 30226
Zettler Magnetics : AHR30329FM-152A

Replaces the Balboa 30209 part numbers
