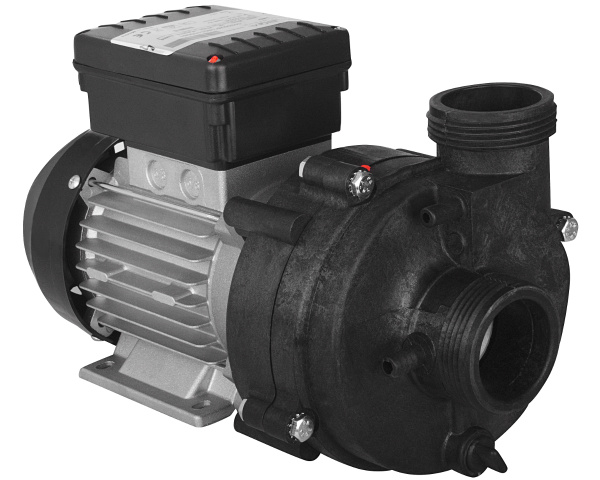

Balboa 0,25HP circulation pump, 1030025

The little Balboa 1030025 circulation pump is designed to provide 24-hour circulation of spa water. This pump was formerly called Balboa High Performance, and it is a very close replacement for the Balboa Ultima, which is no longer available in Europe.

Balboa has recently introduced the 1031025 pump, a new circulation pump that shares the same technical specifications and wet end as the 1030025, but the new model's motor is slightly longer (340 mm vs. 320 mm) and lower (175 mm vs. 205 mm).

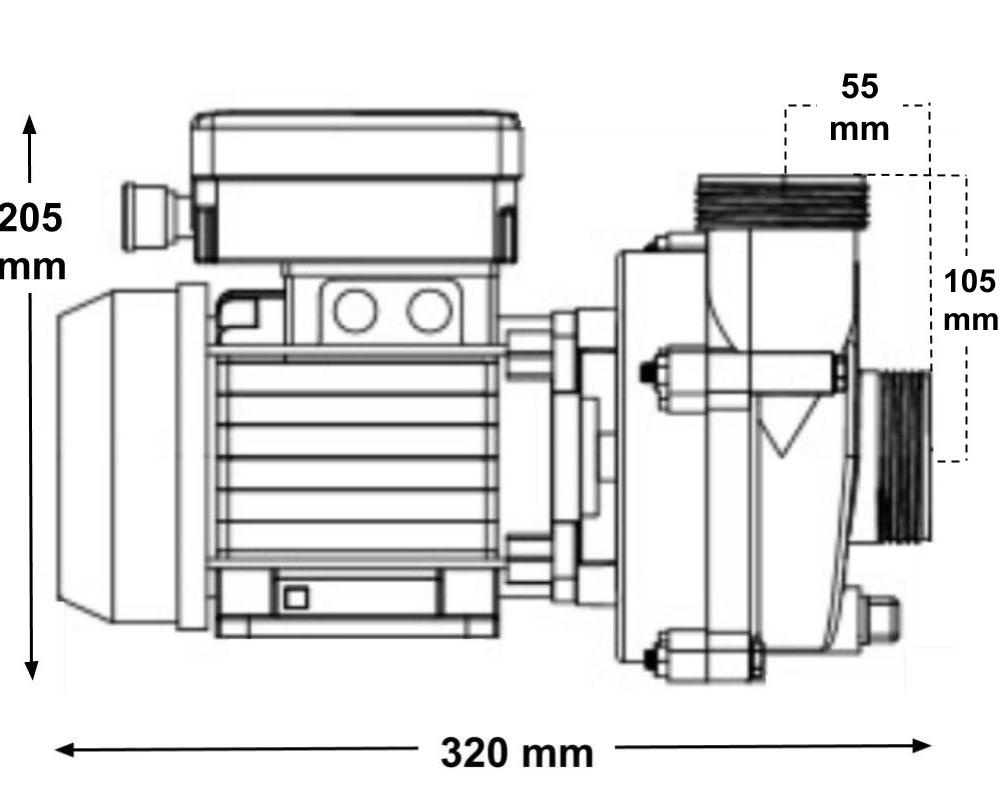

Dimensions
Length: 320 mm
Width: 150 mm
Height: 205 mm

Technical specification
Power: 190 W (0,25 HP)
Current: 0,8 A
Speed: 1400 rpm
Maximum flow rate: 250 litres/minute (15 m3/h)

Plumbing connections
Thread diameter: 62 mm (1.5-inch MBT).
We offer unions for 1.5-inch pipe.

Cable and plug
The pump is supplied pre-cabled without plug (length 110 cm). If you are replacing an existing pump, you may be able to re-use your existing power cord. There is a wiring diagram for connecting it up on the inside of the cover of the water-resistant electrical box.

You can also choose to have the pump pre-cabled by our team with an AMP plug or a mini J&J plug.

Spare parts

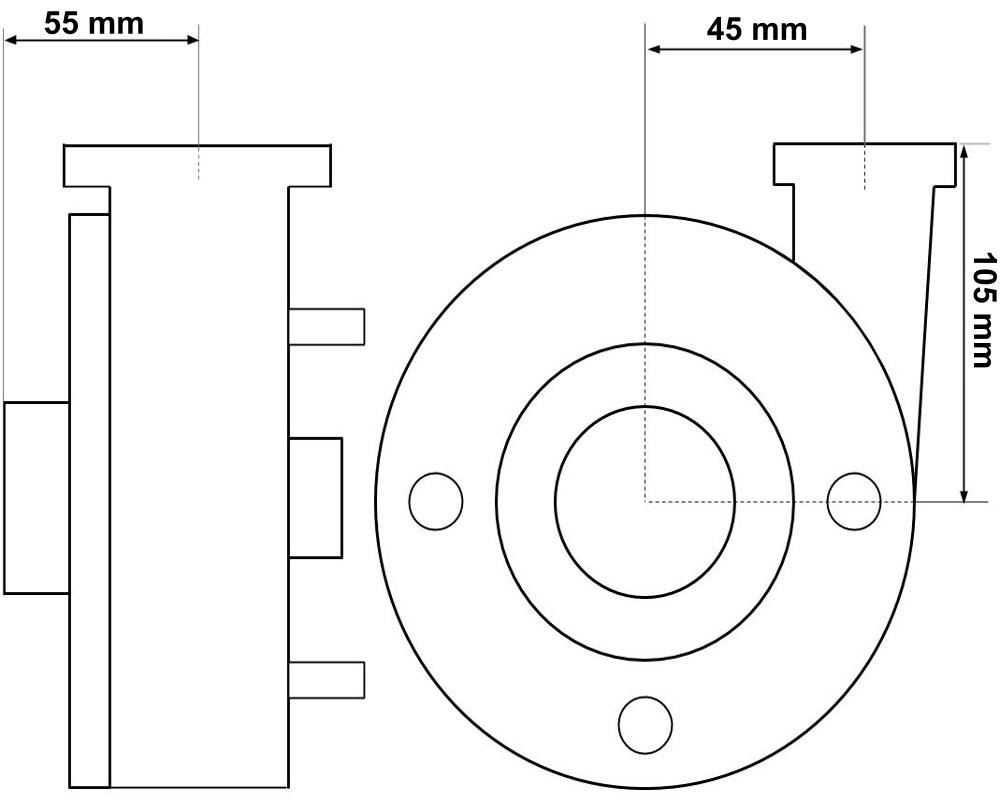

We offer the 6,3µF capacitor, the wet end seal and the entire wet end of this pump as spare parts.

Warranty
2-year Tubs Parts warranty

Part numbers
Balboa: 1030025
