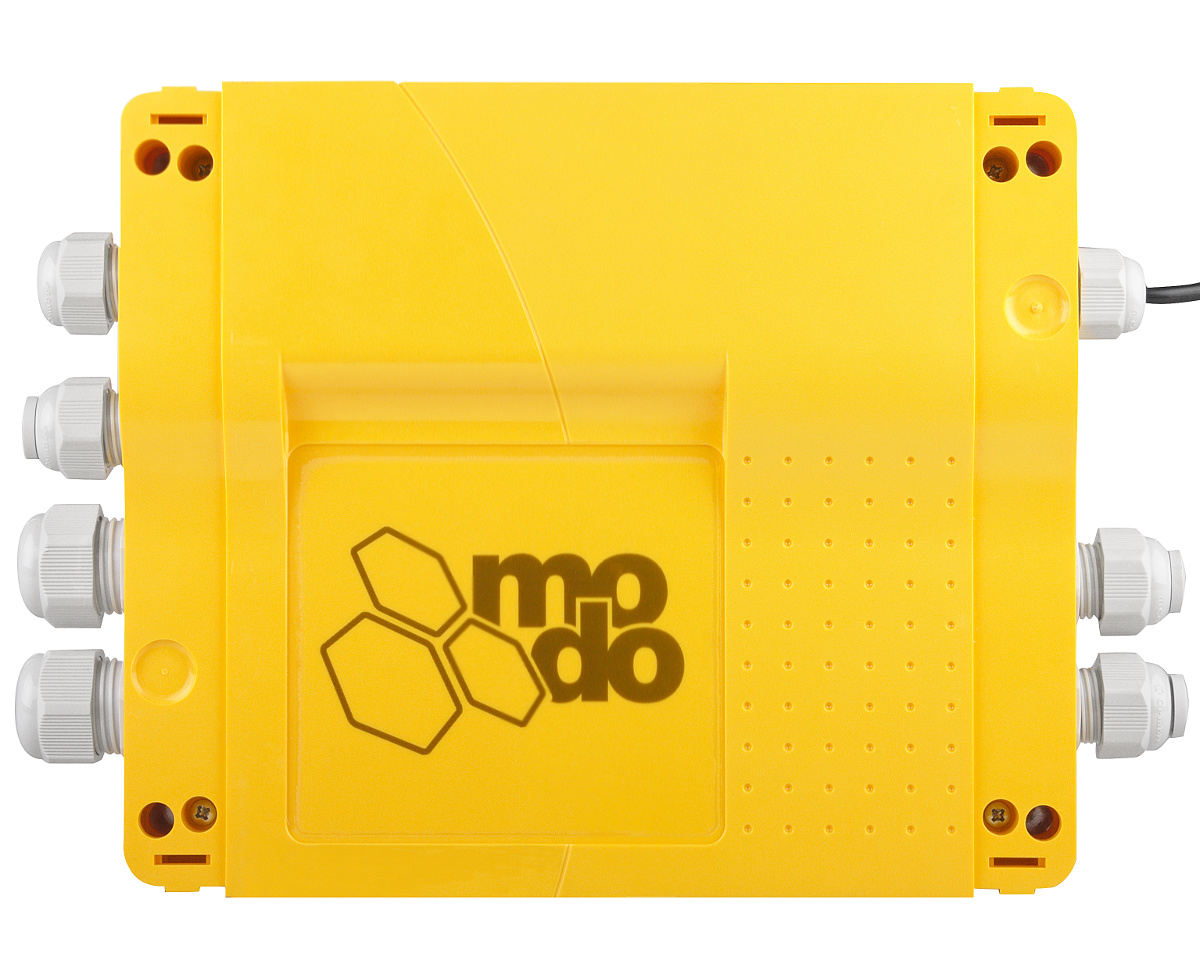

Astrel Easy Mini control system

Astrel Easy Mini control system - Click to enlarge
Astrel Easy Mini control system - Click to enlarge
Astrel Easy Mini control system - Click to enlarge
Astrel Easy Mini control system - Click to enlarge

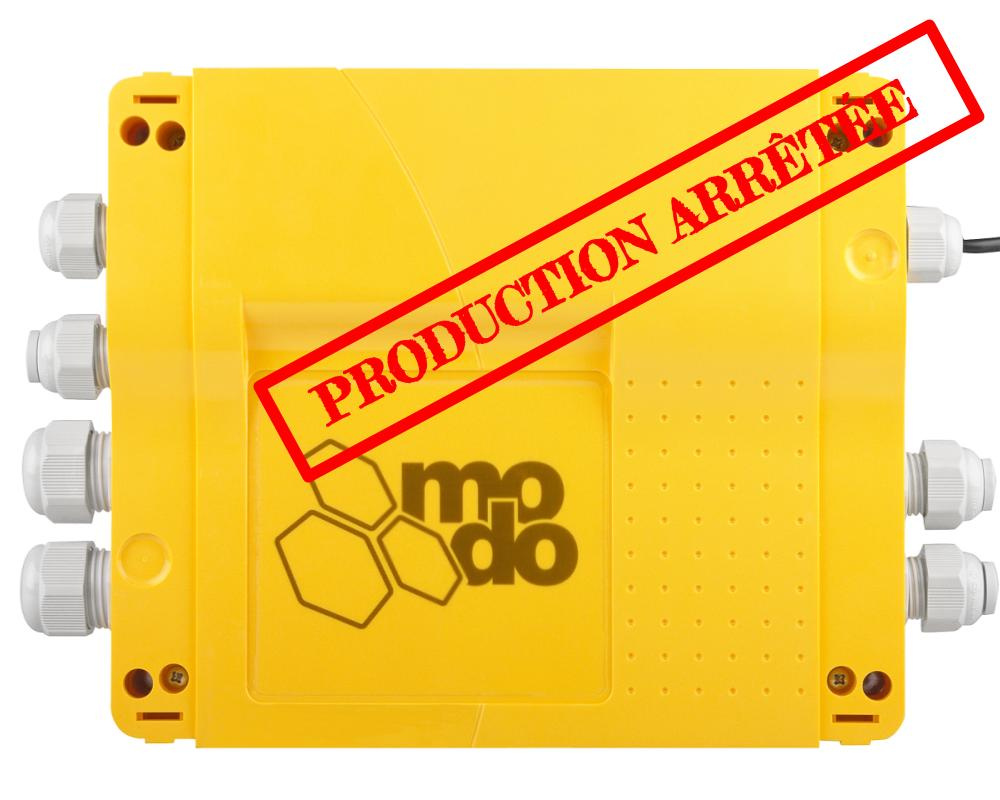

The Easy Mini control box, which is no longer manufactured by Astrel, can manage the following equipment:

1 two-speed pump OR 2 single-speed pumps (1 circulation pump included)
A blower
A heater
An ozonator
Underwater lighting

The maximum power ratings supported are 1.5 kW for the pump(s), and 1.2 kW for the blower.

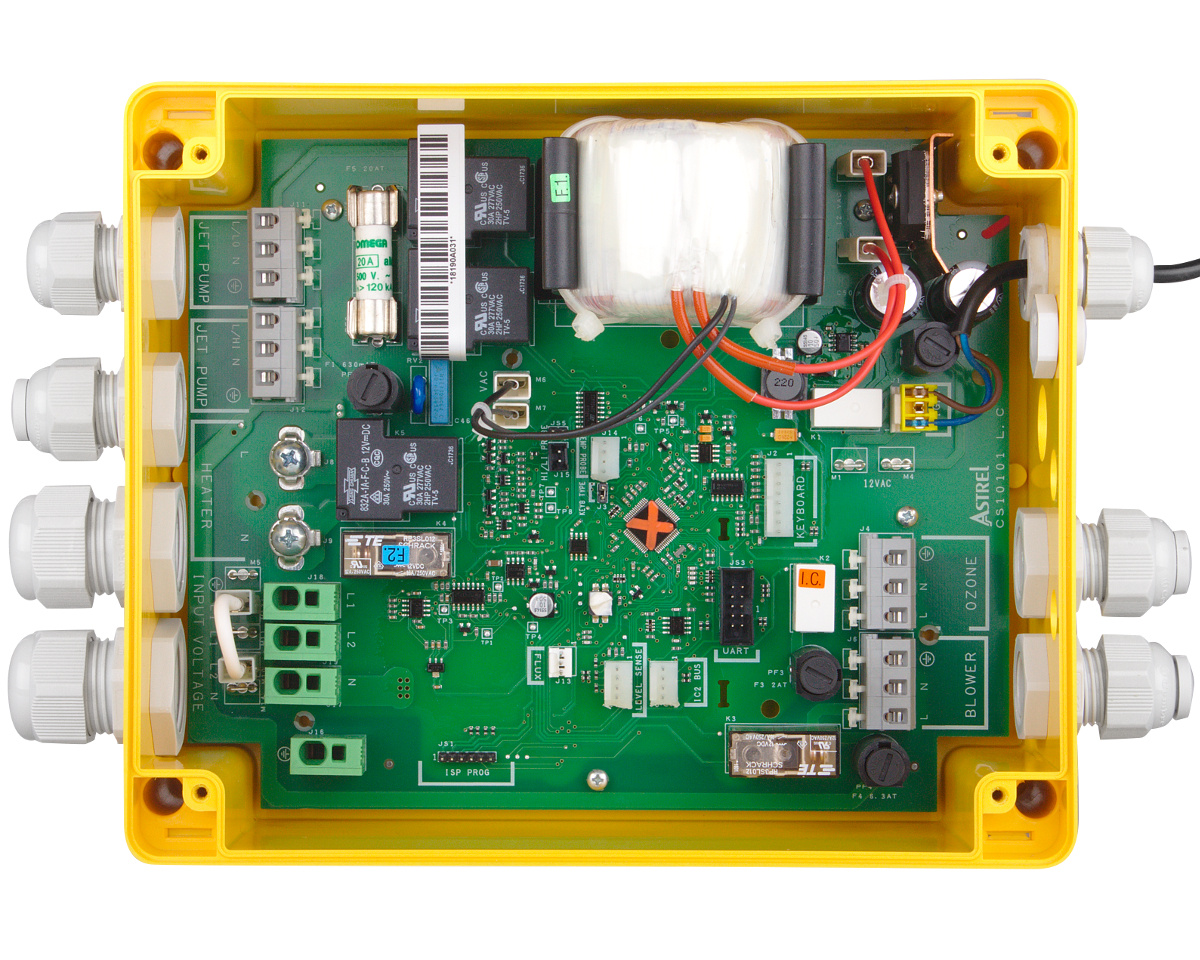

We recommended this system only if you want to replace an identical system. If the Astrel system you want to replace is not equipped with the motherboard of our model (see photo 2), we recommend the Balboa or Gecko spa packs, which are easier to install and use.

Compatible heaters
EasyHeater 2.0 kW, 3.0 kW or 3.6 kW

Compatible keypads
TSC-9, TSC-19, TSC-91
Be careful, the TSC-8 (8-buttons) keypad is only compatible with the Easy Mini Plus system !

Dimensions
Height: 214 mm
Width: 240 mm (260 mm with cable glands)
Depth: 103 mm

Electrical supply
Single phase (220-240V, 50Hz)

Documentation
