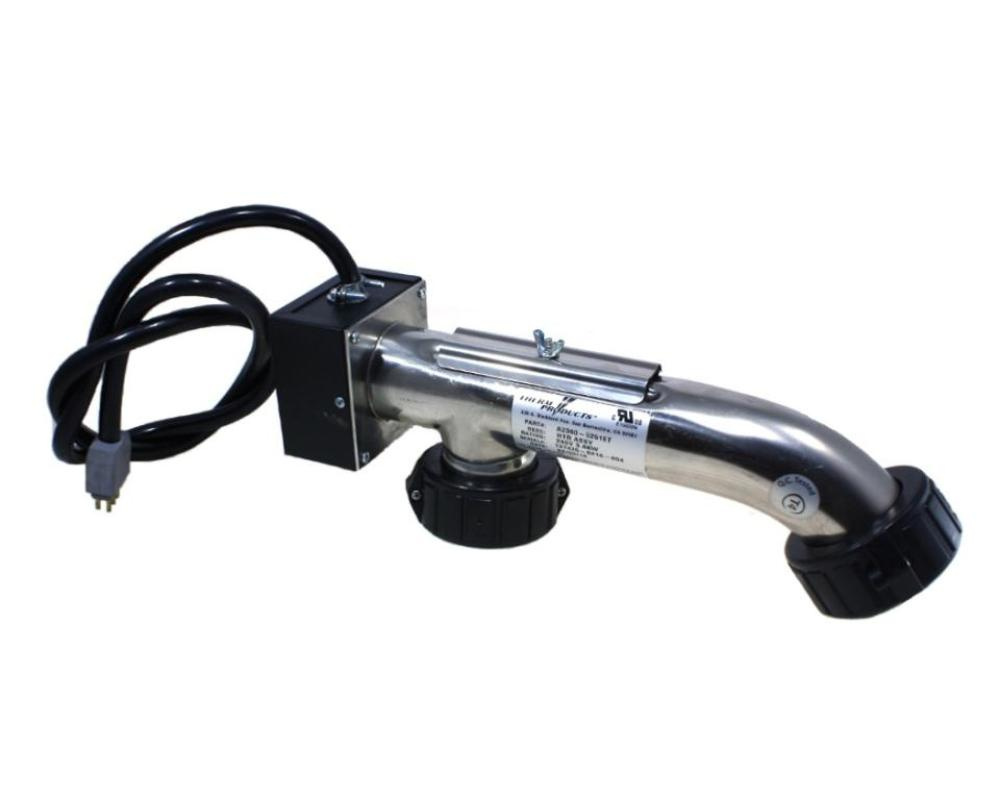

Arctic Spas curved metal heater

Arctic Spas curved metal heater - Click to enlarge
Arctic Spas curved metal heater - Click to enlarge
Arctic Spas curved metal heater - Click to enlarge

Some spas, including Arctic Spas, are equipped with this 3.6 kW curved heater from Therm Core. This part is hard to get hold of, particularly since Therm Core went into bankruptcy in 2017. We advise you to use the HydroQuip version instead.

Power consumption
3.6 kW

Dimensions
Length: 380 mm
Width: 115 mm
Screw thread of the clamping rings: 2" MBT

Part numbers
Therm Core: A2360-5251ET
Another version, the A2550-5251ET, contains a 5.5kw resistance
HydroQuip Equivalent: 26-0005
