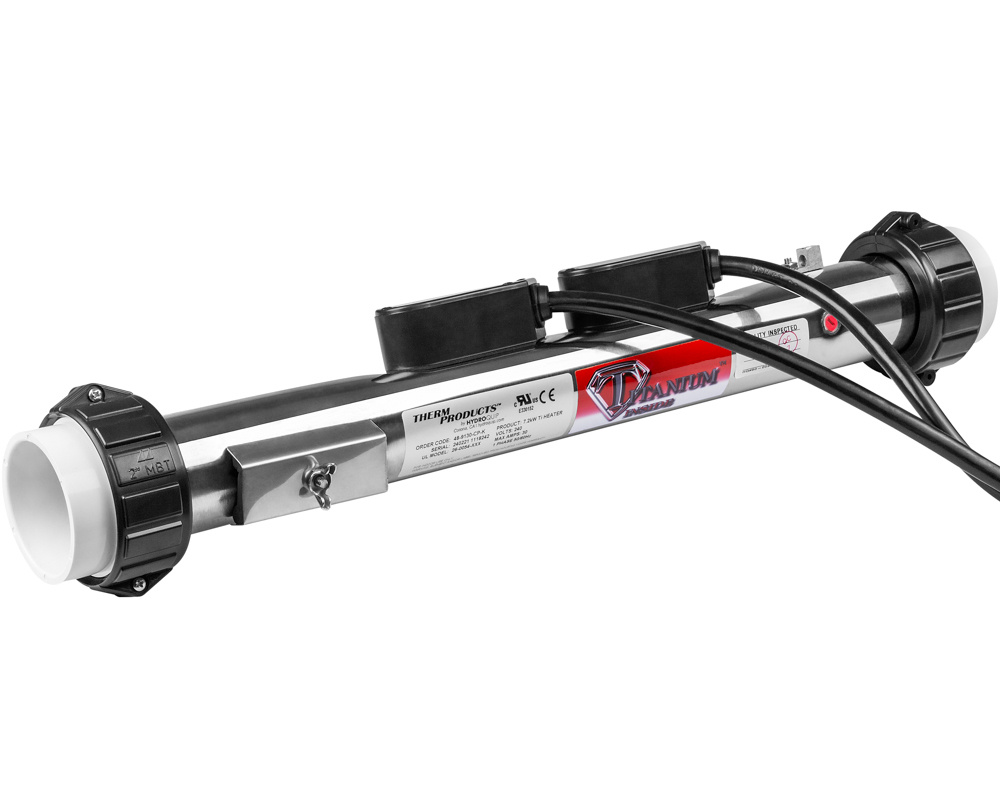

Arctic Spas 7.2 kW flow-thru heater

This HydroQuip heater designed for Arctic Spas comes with two 3.6 kW elements, each with their own power cable. An insulated pocket is provided to insert a temperature and/or hi-limit sensor on the outside of the heater, and a threaded slot is included to mount a pressure switch.

The heater can also be used on other systems requiring the same 7.2 kW heating capacity. Contact us if in doubt.

The heater is supplied with and split nuts, tailpieces and gaskets for 2-inch pipes.

Dimensions
Heater length without unions: 490 mm
Total length including unions: 577 mm
Inside diameter of unions: 60 mm, for 2-inch pipes
Length power cable : 110 cm

Technical specifications
Power : 7.2 kW (2 x 3,6 kW)
Current : 30 A

Warranty
2-year Tubs Parts warranty

Part numbers
HydroQuip : 48-9130-CP-K
Replaces 48-9130, 48-9130-K and 48-9130 R1 to R4
