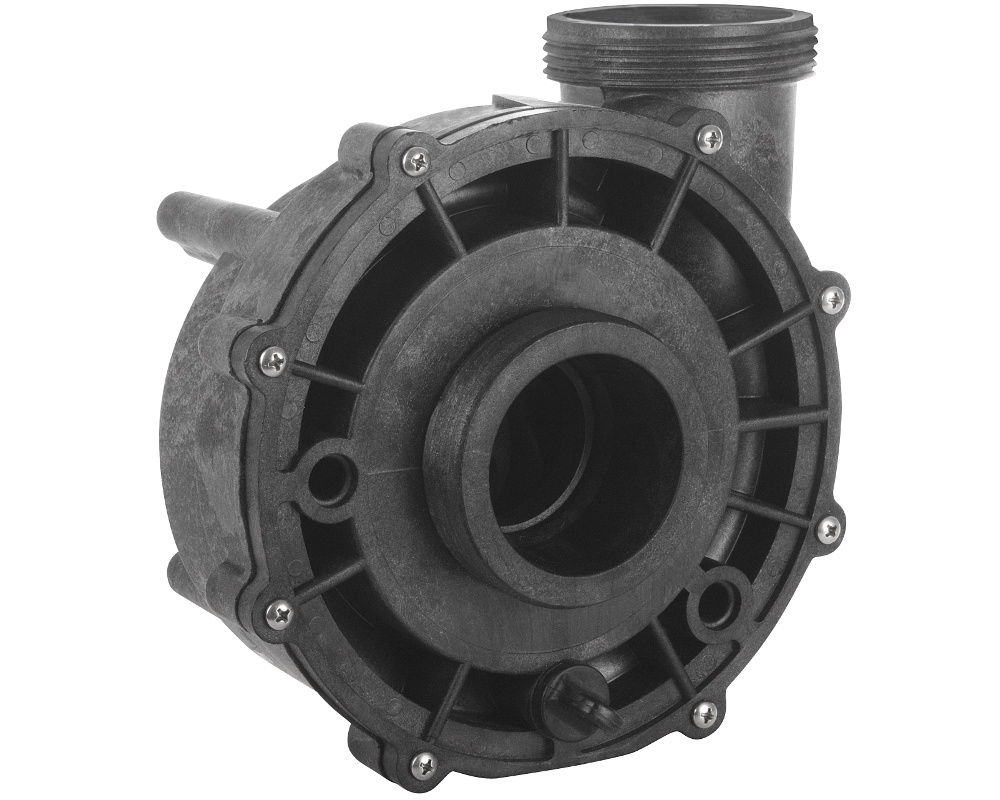

Aqua-Flo XP2 48-Frame wet end

This wet end was designed for the Aqua-Flo Flo-Master XP2, but it is actually manufactured by Waterway. The wet end is complete with all the parts (yes, the impeller and seal are inside).

Dimensions
Outside diameter of thread for pipe connections: 78 mm
Horizontal / vertical distance between mounting points: 91 mm
Diagnoal distance between mounting points: 131 mm

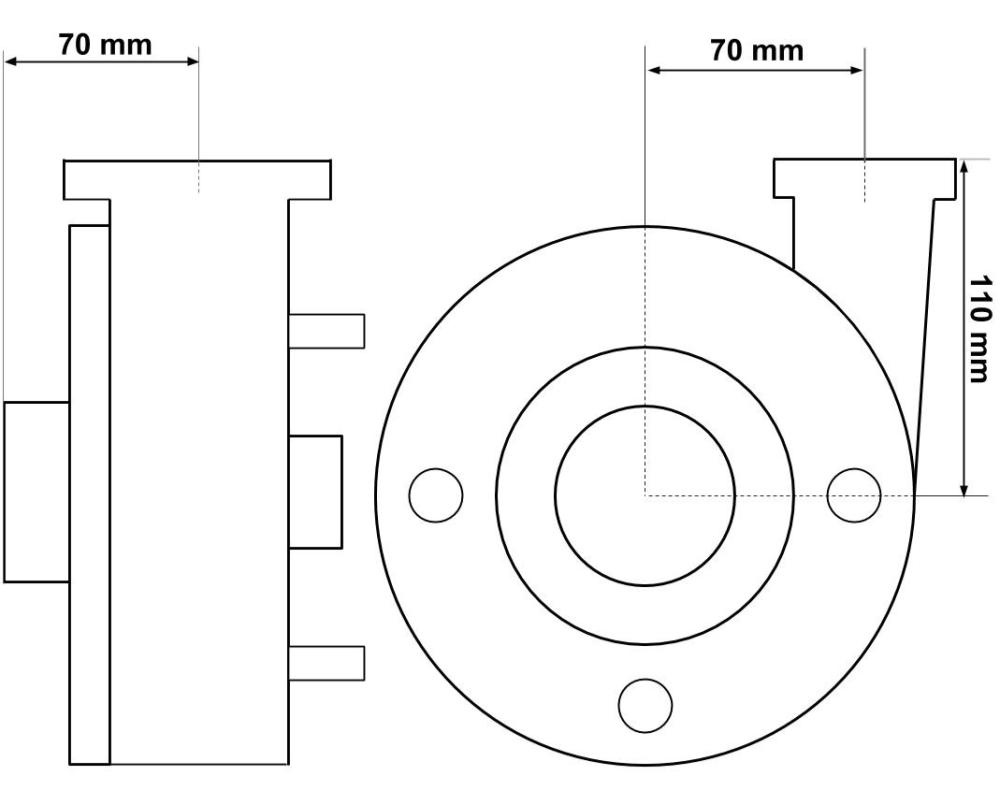

See the diagram for other dimensions.

Aqua-Flo
1,5 HP: 9104181500
2,0 HP: 91041820000
2,5 HP: 91041825000
3,0 HP: 9104183000

Waterway
1,5 HP: 310-2450
2,0 HP: 310-2460
2,5 HP: 310-2470
3,0 HP: 310-2480
