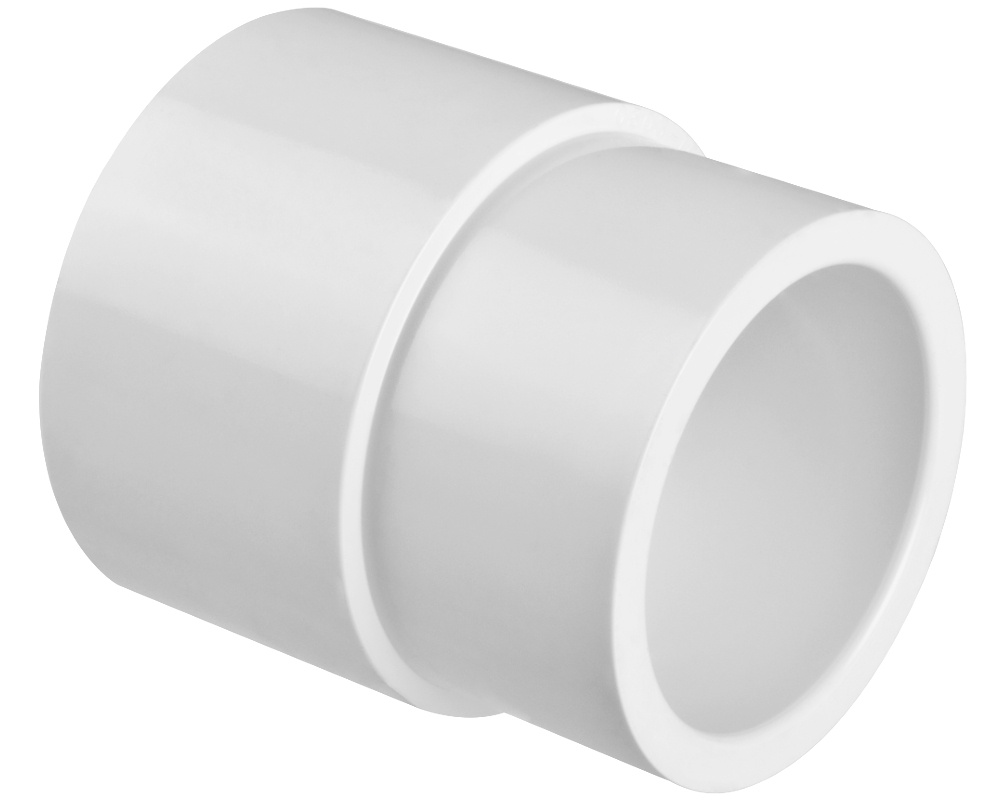

1.5" XF to 2" M ou 1.5" F adapter
This Magic Plastics MagicMend extender fitting is designed to go over fittings where there is not a sufficient amount of pipe left to connect to.
XF "means" Extra Female ". this adapter slides over the outside of a 1.5"female connector. It allows for a 2-inch male or 1.5-inch female connection.
Remove one fitting; connect the extender fitting to the existing fitting and continue with PVC pipe that will solvent weld to the opposite end of the MagicMend. There is no defined standard for the outside diameter of a pipe fitting (only for the pipes themselves). This part works well with all the 1,5" Magic Plastics fittings, but won't necessarily work with other brands, such as Waterway, for example.
Length : 74 mm
Inside diameter (big side): 69 mm (for a female connection on the outside of a female 1,5" fitting)
Inside diameter (small side): 48 mm (for 1.5" pipe)
Outside diameter (small side): 60 mm (for a male connection in a 2" fitting)
Part numbers
Magic Plastics: 0303-15
